CBC UNI 60 Digital Tube bender

UNI 60 A Digital electric bending machine

This compact and versatile machine has a Mild Steel capacity of 50mmOD x 3mm and Stainless Steel of 42mmOD x 2mm and upto 1”1/2NB Gas Pipe. Plus it can bend other more specialised materials such as CDS and T45. Contact us for advice on 01371 859 100.

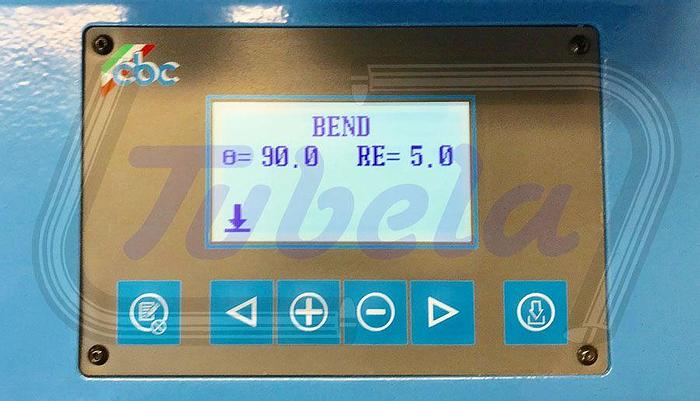

The new touch digital display is for the inputting and control of the bending angle. And you have the ability to program up to 50 memories, each holding 9 different bend angles. This is ideal for multiple but different bends along the length of a piece of tube. When in operation the machine automatically jumps to the next angle for you, so all you need to do is adjust the material to its stop, clamp it up via the quick action device and hold the two buttons while the UNI accurately performs your bend. It also has an automatic return saving you time as you can be removing the bent tube and getting the next tube ready for installation.

A Quick Action Guide/Roller Positioning device is included as standard.

Standard bending radii is 3D & 4D.

240v

110v is available to special order + £249. Please contact us.

Packed in a protective wooden carry case.

Specification:

UNI60D’s material capacity:

Ø54mmod x 3mm hard & soft copper and annealed brass tubes

Ø50mmod x 3mm Mild Steel (ERW)

Ø50mmod x 4mm Hydraulic Tube

Ø48.4mmod / 1”1/2nb Gas/black Pipe (Medium weight BS1387 / DIN2440)

Ø42mmod x 2mm (1”5/8od) AISI 316/304 Stainless Steel

Ø1"OD x 3mm Super Duplex - with Tie-Bar

Ø54mmod x 3mm Aluminium (6061/63-T4/T6 bending quality)

Ø25mmOD Black Bar

35mm x 35mm x 2mm Square mild steel

*You need to purchase the optional Tie-Bar if you intend to bend over 33mmod in Stainless Steel, 38mmod Mild Steel and 42mmod (1”1/4nb) in Pipe.

Size:

UNI60D 52x21x41cm

Wooden box 75x38x58cm

UNI60D packed 80kg
