UNI 70/C Digital electric 3-phases bending machine

The UNI70D is a twin speed, digitally controlled, motorised Tube, Pipe, Square and Bar bending machine. Now with a Touch Control Panel.

This floor mounted and versatile machine has a large material capacity: Mild Steel 60mmod x 2mm, Stainless Steel of 54mmod x 4mm and upto 2”nb Gas Pipe. Plus it can bend other more specialised materials such as CDS and T45. Contact us for advice on 01371 859 100.

You can also add the optional Mandrel attachment and convert this into a Mandrel bender to do as tight as 2D radii bends without tube deformation. Its capacity here is 2”od x 2mm Stainless Steel.

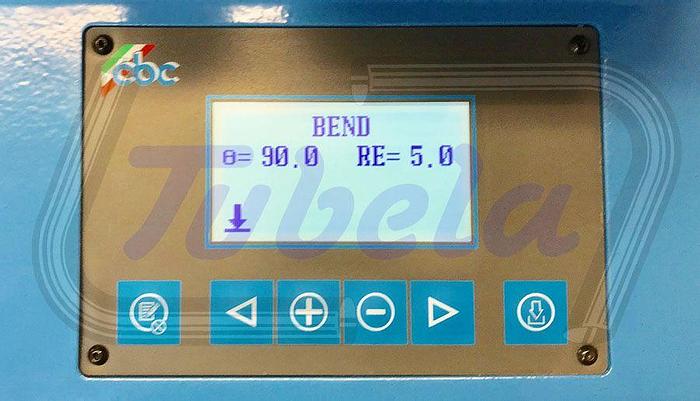

The new touch digital display is for the inputting and control of the bending angle. And you have the ability to program up to 50 memories, each holding 9 different bend angles. This is ideal for multiple but different bends along the length of a piece of tube. When in operation the machine automatically jumps to the next angle for you, so all you need to do is adjust the material to its stop, clamp it up via the quick action device and hold the two buttons while the UNI accurately performs your bend. It also has an automatic return saving you time as you can be removing the bent tube and getting the next tube ready for installation.

A maximum bend angle of 200˚.

A Quick Action Guide/Roller Positioning device is included as standard.

Standard bending radii is 3D & 4D.

415v three phase.

Packed in a protective wooden transport case.

Specification:

UNI70D’s material capacity:

Ø60mmod x 4mm hard & soft copper and annealed brass tubes

Ø60mmod x 2mm Mild Steel (ERW)

Ø60mmod x 4mm Hydraulic Tube

Ø60.3mmod / 2”nb Gas/black Pipe (Medium weight BS1387 / DIN2440)

Ø54mmod x 4mm (2"1/8od) AISI 316/304 Stainless Steel

Ø1"1/4OD x 4mm Super Duplex, with TieBar.

Ø60mmod x 5mm Aluminium (6061/63-T4/T6 bending quality)

Ø35mmOD Black Bar

50 x 50mm Square x 4mm Mild Steel

*You need to purchase the optional Tie-Bar if you intend to bend over 33mmod in Stainless Steel, 38mmod Mild Steel and 42mmod (1”1/4nb) in Pipe.

Size:

UNI70D 810x400x1100cm x 240kg
