OPTI D 33 Pro drill including vice

Features

• Industrial
• Easy to use safety switch according to IP 54
• Digital drilling depth and speed indicator integrated in the housing
• Separate emergency stop impact switch
• Precision Spindle bore
• Safety electronics in 24 V DC
• Guaranteed concentricity measured less than 0.02 mm in the drill quill
• Drill spindle with precision ball bearings
• High quality keyless chuck
• Depth stop
• Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel

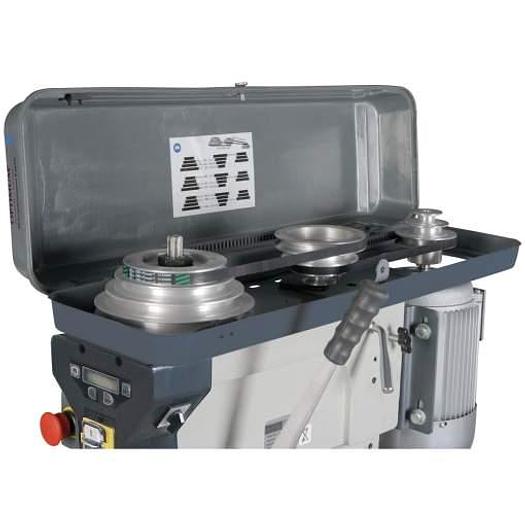

• V-belt cover with safety switch
• One piece cast aluminum die-cast quill lever with softgrip handles
• Large, height-adjustable protective screen with safety switch
• Heavy version of the entire machinE

Delivery Contents

• Keyless chuck 1 – 16 mm
• Morse cone MK 4 / B16
• T-nuts

Dimensions and Weights

Column diameter

92mm

Length

915mm

Width/Depth

450mm

Height

1705mm

Net Weight

132kg

Drilling Performance

Drilling performance steel

30mm

Continuous drilling performance steel

25mm

Drilling Table

Drilling table length

475mm

Drilling table width

425mm

Drilling table T-groove size

14mm

Drilling table rotation

360°

Drilling table angle

45°

Max. distance spindle

695mm

Speed Range

Speed range

120-1810min¯¹

Number of gears

9

Electrical Data

Supply Voltage

400V

Mains frequency

50Hz

Drive motor output

1.1kW

Machine Base

Max. distance spindle

1180mm

Machine base length

410mm

Machine base width

325mm

Machine base T-groove size

16mm

Machine base T-groove n.

2

Machine base T-groove space

250mm

Spindle

Quill stroke

120mm

Spindle chuck

MT 4

Reach

254mm
